Uni-Bond MP-12

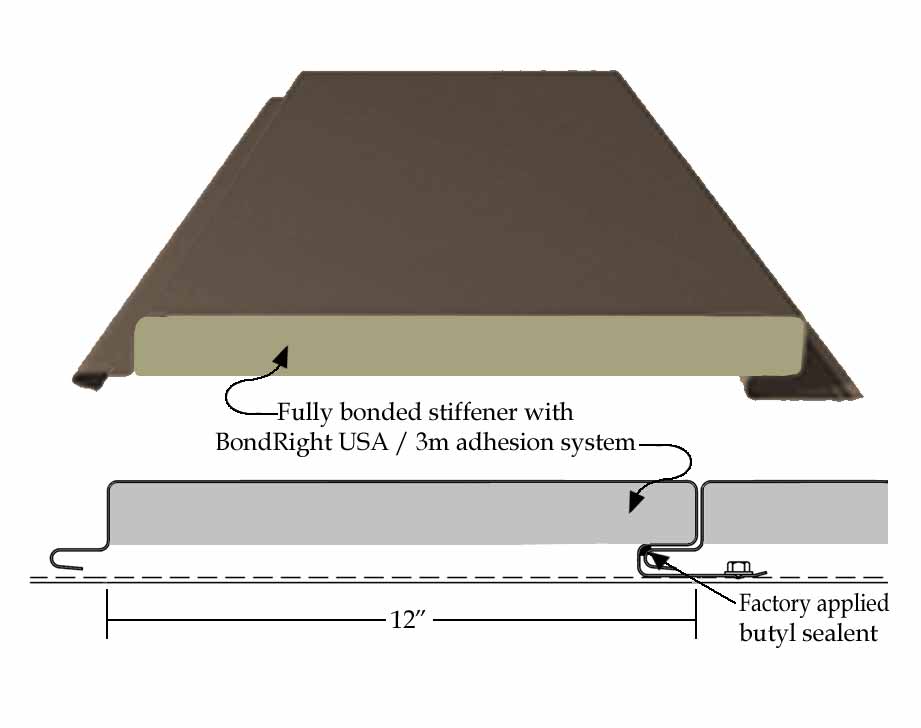

Uni-Bond MP-12 is an affordable flat solution for exterior and interior walls, fascias and equipment screen applications. The panel’s concealed fastener system provides a clean, distinctive look in any application. The bonded insulation minimizes, deflection in the panel system which is common to similar (non-backed) systems. Metposite utilizes the time tested BondRight 3m system to assure a flat attractive panel.

FEATURES AND BENEFITS

  Has been tested for air infiltration per ASTM E283, and water infiltration per ASTM E331.

  Sealant is provided as a standard to create superior air and water infiltration resistance

  Has been structurally tested per ASTM E1592.

  Designed for use as a wall panel installed both horizontally and vertically. (22 gauge or heavier)

  Compatible trim and accessories are readily available.

  Available in 24 and 22 gauge in a wide variety of standard colors in DuraTech®5000

      and DuraTech®mx (polyvinylidene fluoride) coating systems, including ZACtique®II

      or bare Zincalume® or Galvalume® Plus.

                               (Max. length limitations 24 ga. = 12’ 22 ga, = 30’)



Unibond MP-12 Section Properties
GAUGE Wt. S+  I+ S-  I+
(lbs./ft.2)  (ins.3/ft.)  (ins.4/ft.)  (ins.3/ft.) (ins.4/ft.)
24 1.47  .0604 .0546 .0732  .0892
22 1.85 .0852 .0741 .0968 .1164

Unibond MP-12 - 12 up - Allowable Distributed Load (psi)


Span (ft.in.)

Gauge

Span

Conditions

4" 0"

 5' 0" 6' 0' 7' 0"
24

SS

f
 L/180

75
74

 48
38		 33
22		 24
13

DS

 f
 L/180

91
91

 58
58		 40
40		 29
29

TS

 f
 L/180

114
114

 73
72		 50
41		 37
26
22 SS f
 L/180		 106
101		 68
51		 47
30		 34
18
DS f
 L/180		 121
121		 77
77		 53
53		 39
39
TS f
 L/180		 151
151		 96
96		 67
56		 49
35

Unibond MP-12 - 12 up - Allowable Span  (ft-in)
  Distributed Load (pfs)
  10 psf 20 psf 25 psf 30 psf 40 psf 50 psf
Conditions Spans Spans Spans Spans Spans Spans
  SS DS TS SS DS TS SS DS TS SS DS TS SS DS TS SS DS TS

24 gauge             f

 10-11 12-1 13-6 7-9 8-6 9-6 6-11 7-7 8-6 6-4 6-11 7-9 5-5 6-0 6-9 4-10 5-4 6-0

24 gauge         L/180

 7-9 10-5 9-7 6-2 8-3 7-7 5-9 7-7 7-1 5-5 6-11 6-8 4-11 6-0 6-1 4-6 5-4 5-7

22 gauge              f

 13-0 13-10 15-6 9-2 9-10 11-0 8-3 8-9 9-10 7-6 8-0 8-11 6-6 6-11 7-9 5-10 6.2 6-11

22 gauge         L/180

 8-7 11-7 10-8 6-10 9-2 8-5 6-4 8-6 7-10 6-0 8-0 7-4 6-5 6-11 6-8 5-0 6.2 6-3
